Quick Start Guide¶
Your First Eye-Tracking Study in 5 Minutes
Follow this guide to run your first study from start to finish. By the end, you'll have collected real eye-tracking data!
🎯 What You'll Accomplish¶
In this quick start, you'll:
- ✅ Set up a simple eye-tracking study
- ✅ Test it yourself as a participant
- ✅ View beautiful heatmap visualizations
- ✅ Export your data
Let's go! 🚀
Step 1: Launch RemoteGazeUX¶
Open your terminal and start the application:
After being asked to modify your configuration, create admin users you should see:
Keep this terminal window open
The application runs here. You'll see helpful logs as participants connect.
Step 2: Create Your Study¶
Use the Configuration GUI¶
When running RemoteGazeUX you should see
Inputting yes will open a GUI for setting a new prototype URL, a different port or also change the tasks.
Also, you can open this GUI with:
A friendly GUI window appears! 🎨
TODO: hacer captura
Fill in your study details:
- Study Name: "My First Eye-Tracking Test"
- Prototype URL: Use the demo or your own Figma prototype
- Demo:
https://www.figma.com/proto/example(try a real Figma link!) - Or upload an image path:
/path/to/your/image.png - Tasks: Define what participants should do
- Task 1: "Find the login button"
- Task 2: "Locate the search feature"
Click Save ✅
Step 3: Test as a Participant¶
Now for the fun part — experience what your participants will see!
3.1 Open the Study¶
Navigate to: http://localhost:5000

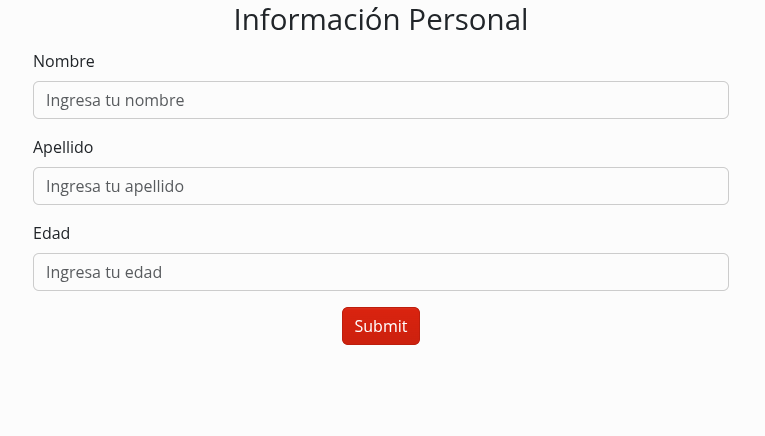

3.2 Fill the Entry Form¶
You'll see a clean registration form:
Fill in test data:
- Name: Test
- Surname: User
- Age: 25
Click Submit 🎯
3.3 Calibration¶
Calibration is Key
Good calibration = accurate eye-tracking data. Take your time here!
You'll see a series of dots on screen:
- Sit comfortably - Keep your head relatively still
- Click each dot - Look directly at each point when clicking
- Click 5 times per dot when prompted
- Follow instructions carefully
Pro Tip
Room lighting matters! Avoid backlighting (windows behind you) for best results.
3.4 Complete the Tasks¶
After calibration, you'll see your prototype with task instructions:
- Task instructions appear at the top
Just interact naturally! Look around, click things, explore the interface.
3.5 Finish¶
When all tasks are complete, you'll see a thank you message.
Congratulations! You've just collected your first eye-tracking data! 🎉
Step 4: View Your Results¶
Now for the exciting part — see what you tracked!
4.1 Access the Admin Panel¶
Navigate to: http://localhost:5000/sujetos
Login with your admin credentials.
4.2 Explore Your Data¶
You'll see:
- Studies tab - All your studies
- Participants list - Click on "Test User"
- Session details - Timestamp, duration, task completion
4.3 View the Heatmap¶
Click "View Results" for your test participant.
Wow! 🤯 This heatmap shows:
- 🔥 Hot spots (red/yellow) - Where you looked most
- 🧊 Cold spots (blue/green) - Areas you ignored
- ⚫ Blind spots - Never looked at
4.4 Analyze the Data¶
Toggle through different visualizations:
- Static Heatmap - Overall attention distribution
- Gaze Plot - Sequential path of eye movements
- Mouse Track - Where you clicked and moved
Publication-Ready Graphics
These visualizations are high-quality and ready for presentations or papers!
Step 5: Export Your Data¶
Want to analyze the raw data? Easy!
Export Individual Session¶
On the results page, click "Download CSV"
You'll get a file with columns:
date,x_mouse,y_mouse,x_gaze,y_gaze
2025-10-16 11:32:36,0.0,0.0,1399.614608374622,485.90008997831643
2025-10-16 11:32:36,0.0,0.0,1173.1436953906164,400.8048705042029
2025-10-16 11:32:36,0.0,0.0,1097.997644500679,373.6929253870312
2025-10-16 11:32:36,0.0,0.0,1908.0,0.0
...
Perfect for analysis in Python, R, Excel, or your favorite tool!
Export Entire Study¶
From the studies page, click "Download All Data" to get all participants data.
🎓 You Did It!¶
In just 10 minutes, you've:
- ✅ Set up a study
- ✅ Collected eye-tracking data
- ✅ Generated professional visualizations
- ✅ Exported data for analysis
🚀 Next Steps¶
Now that you know the basics, level up:
Deep Dive into Data:
- Statistical analysis
- Comparison between participants
- Task performance metrics
- Attention mapping
Power User Mode:
- Multiple simultaneous studies
- Custom databases
- API integration
- Automated reporting
Documentation soon...
💡 Tips for Success¶
Best Practices
For Accurate Data:
- Ensure good lighting (avoid backlighting)
- Ask participants to keep their head relatively still
- Test your calibration process first
For Better Studies:
- Keep tasks clear and specific
- Don't have too many tasks
- Pilot test with 2-3 people first
- Provide clear instructions to participants
Common Gotchas
- Calibration skipped? Data quality suffers. Always calibrate!
- Poor lighting? Tracking accuracy drops
- Too many browser tabs? Close them for better performance
- Mobile devices? Eye-tracking works best on desktop/laptop
🎯 Challenge: Run a Real Study!¶
Ready for the real deal?
- Design a meaningful study - What do you want to learn?
- Recruit 5-10 participants - Friends, colleagues, or users
- Collect real data - Run your study!
- Analyze and share - What did you discover?
Share your results with the community — we'd love to see what you learn! 🌟
Feeling confident? → Learn about all features
Want to go deeper? → Advanced configuration
